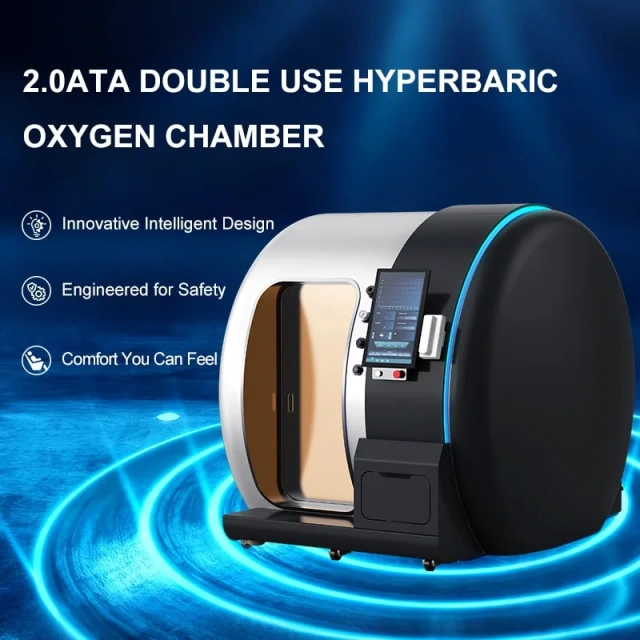

Designed for long-term, high-frequency use in healthcare and medical wellness environments, this 2.0 ATA dual-person hard shell hyperbaric oxygen chamber provides a stable, efficient, and comfortable oxygen therapy experience for institutions that value safety, reliability, and operational efficiency.
| Chamber Module Parameter | |
|---|---|
| Model No | OLV-YZM02 |
| Material | Aluminum Alloy |
| Chamber Dimension | L2230mm × W1900mm × H1970mm (L88 × W75 × H78 Inch) |
| Pressure | 1.3-2ATA |
| Weight | 750kg |
| Door Thickness | 40MM |
| Voltage | AC 240V / AC 110V, 50/60Hz |
| Input Power | 200W |

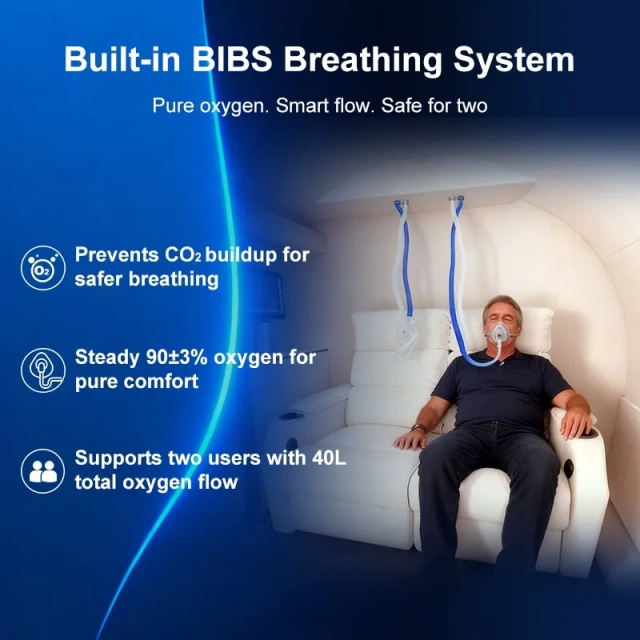

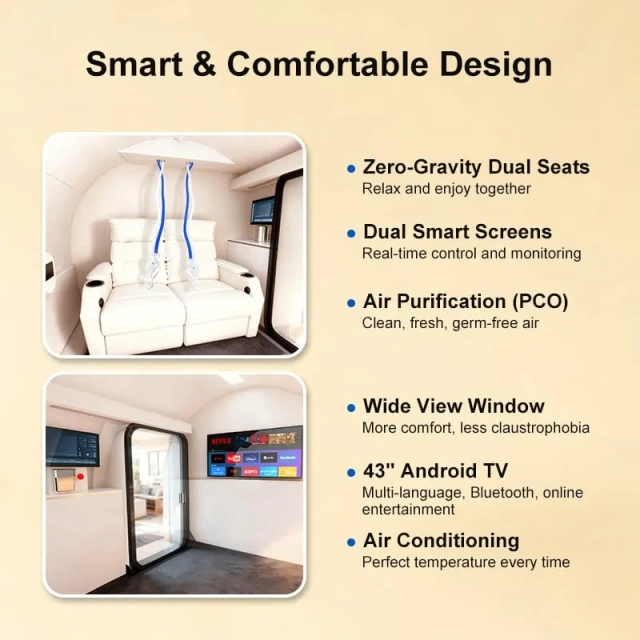

| Include | BIBS breathing system, Double sofa, 43-inch TV, Air conditioning, Intercom, Interior/Exterior Control Panel, Emergency stop button, Emergency pressure relief device |
| Air Conditioning Module Parameter | |
|---|---|
| Dimension | Exterior Dimension: L365×W445×H600 MM Interior Dimension: L530×W170×H260 MM |
| Weight | Exterior Weight: 30 KG Weight: 4 KG |
| Temperature Range | 2–10°C |
| Air Volume | 420 m³/hour |
| Wind Speed | 5 m/s |
| Power | 200W |

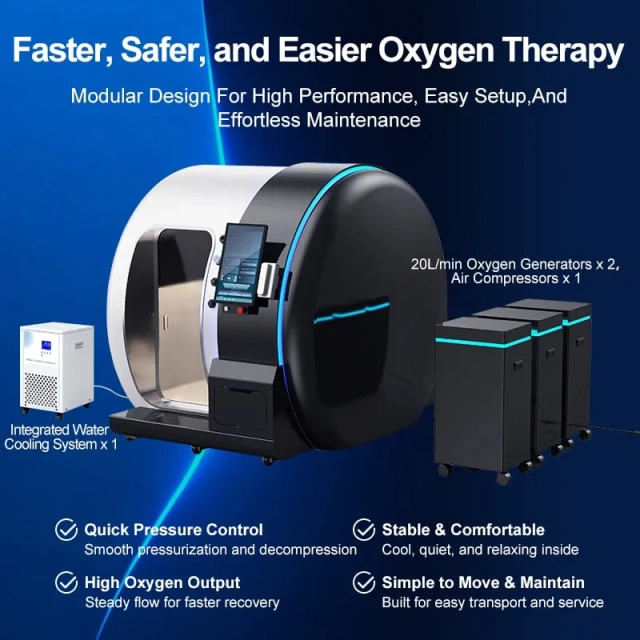

| Oxygen Module Parameter | Air Booster Module Parameter |
|---|---|
| Model No: OLV-YC20S | Model No: OLV-YCZ01 |
| Dimension: L500mm × W400mm × H960mm (L20 × W16 × H38 inch) |
Dimension: L500mm × W400mm × H960mm (L20 × W16 × H38 inch) |
| Weight: 90 kg | Weight: 100 kg |
| Outlet Pressure: >200 KPa | Output Pressure: >350 KPa |
| Oxygen Flow: 0–20 L/min (×2) | Air Flow: >400 L/min |
| Oxygen Purity: 93±3% | Noise: ≤60 dB |
| Oxygen Outlet Pressure: >350 KPa | Voltage: AC 240V / AC 110V, 50/60Hz |
| Voltage: AC 240V / AC 110V, 50/60Hz | Power: 3100 W |

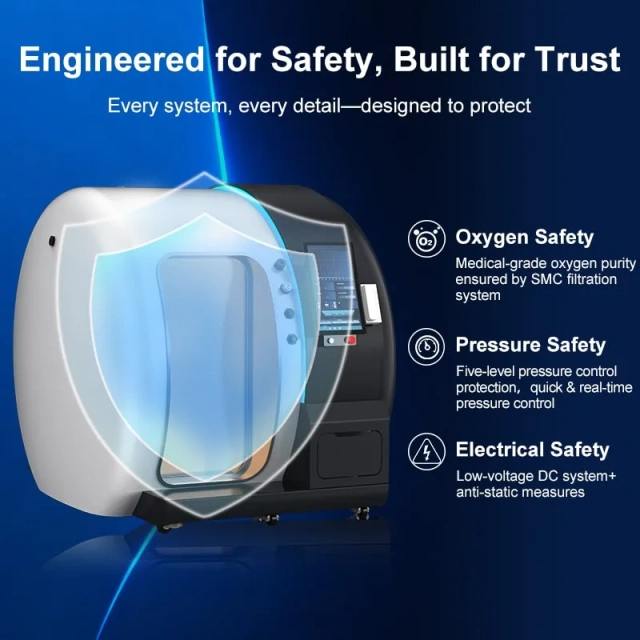

4. Multi-Layer Safety Design
Safety is a core consideration in healthcare environments. This hyperbaric oxygen chamber incorporates multiple independent protection mechanisms to support safe and reliable operation:
Automatic pressure relief valves for controlled depressurization
Manual emergency pressure release for immediate response

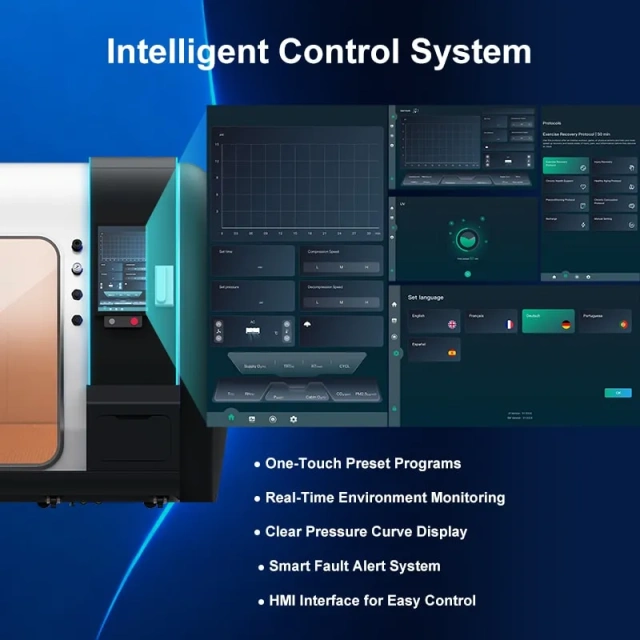

Intelligent pressure monitoring with automatic adjustment
Emergency stop and power-off protection
Stable structural design for even pressure distribution
Together, these systems provide reassurance for both operators and users during daily operation.

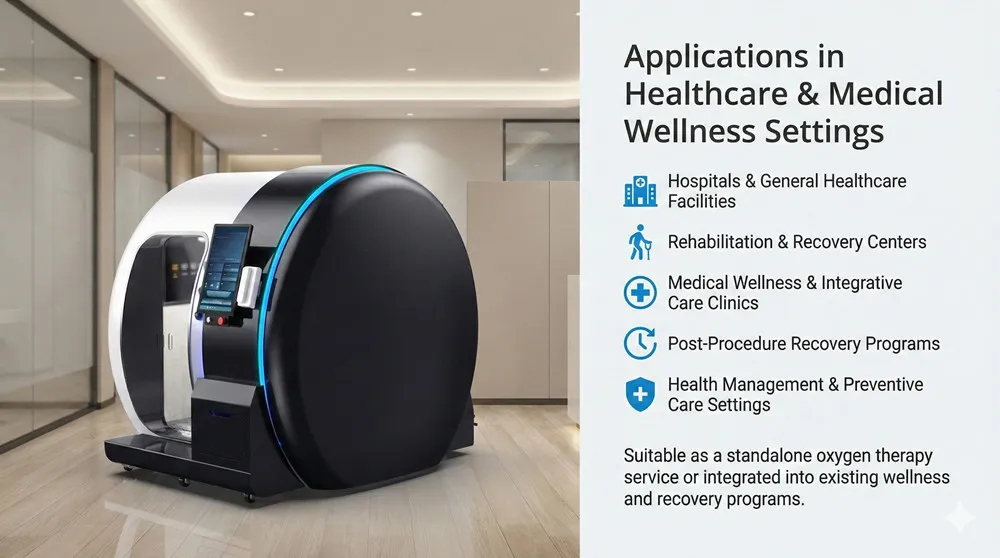

5. Applications in Healthcare & Medical Wellness Settings

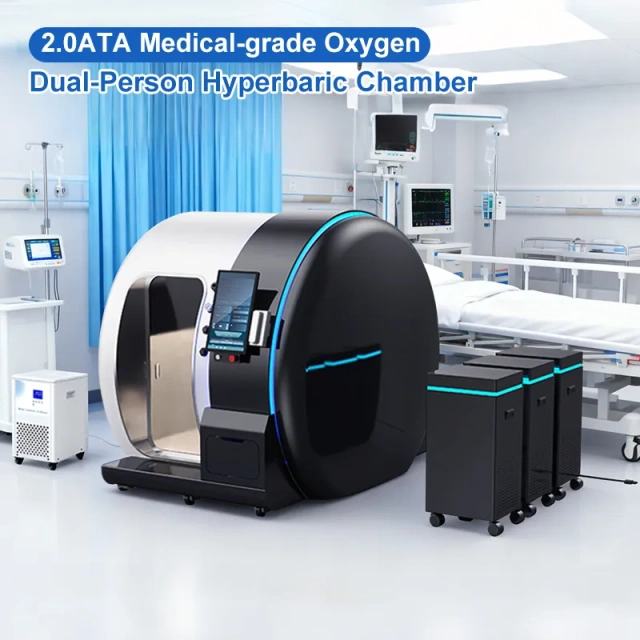

This 2.0 ATA dual-person hard shell hyperbaric oxygen chamber is commonly used in:
Hospitals and general healthcare facilities
Rehabilitation and recovery centers
Medical wellness and integrative care clinics
Post-procedure recovery programs
Health management and preventive care settings
It can be introduced as a standalone oxygen therapy service or integrated into existing recovery and wellness programs.
